Armored Vehicle for





|
MOWAG ROLAND APC |
|
|
|
|
|
Country Of Origin: |
|
|
Designation: |
Armoured Personnel Carrier |
|
Configuration: |
4 x 4 |
|
Manufacturer: |
MOWAG Motorwagenfabrik, |
|
|
|
|
|
|
|
Crew: |
3 + 3 |
|
Armament: |
1 x 7.62 mm MG |
|
Ammunition: |
1,000 x 7.62 mm |
|
Length: |
4.44 m |
|
Width: |
2.01 m |
|
Height (Turret Top): |
2.03 m |
|
Ground Clearance: |
0.4 m |
|
Wheelbase: |
2.5 m |
|
Weight (Combat): |
4,700 kg |
|
Weight (Empty): |
3,900 kg |
|
Power To Weight Ratio: |
42.9 hp / tonne |
|
Engine: |
V-8 4-stroke water-cooled petrol |
|
|
developing 202 hp at 3,900 rpm |
|
Maximum Road Speed: |
110 km / hr |
|
|
550 km |
|
Fuel Capacity: |
154 lit |
|
Fording: |
1 m |
|
Vertical Obstacle: |
0.4 m |
|
Trench: |
Not applicable |
|
Gradient: |
60 % |
|
Side Slope: |
30 % |
|
Armour: |
8 mm (maximum) |
|
Armour Type: |
Steel |
|
NBC System: |
None |
|
Night Vision: |
Optional |
Reference

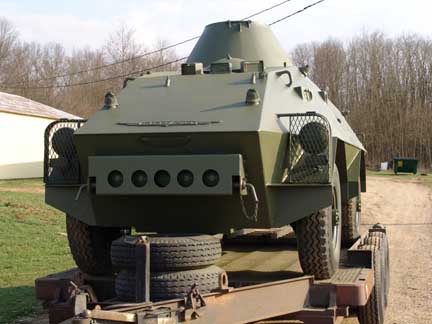

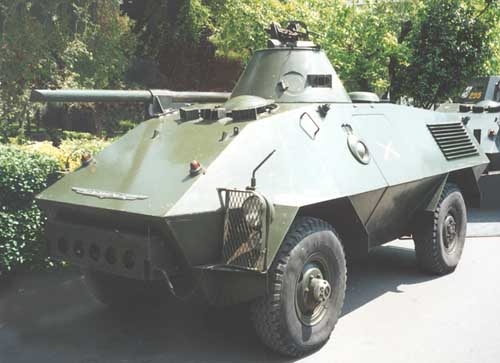

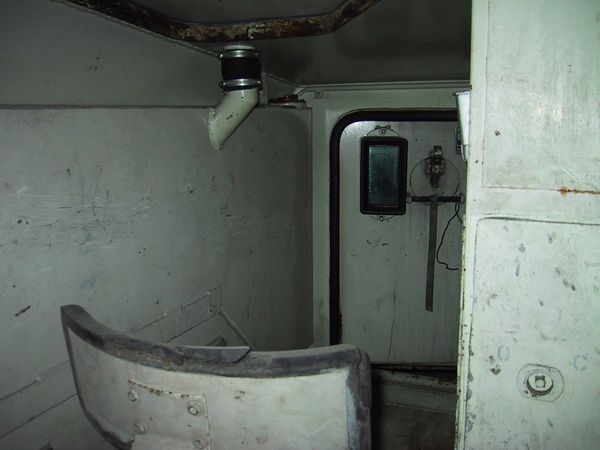

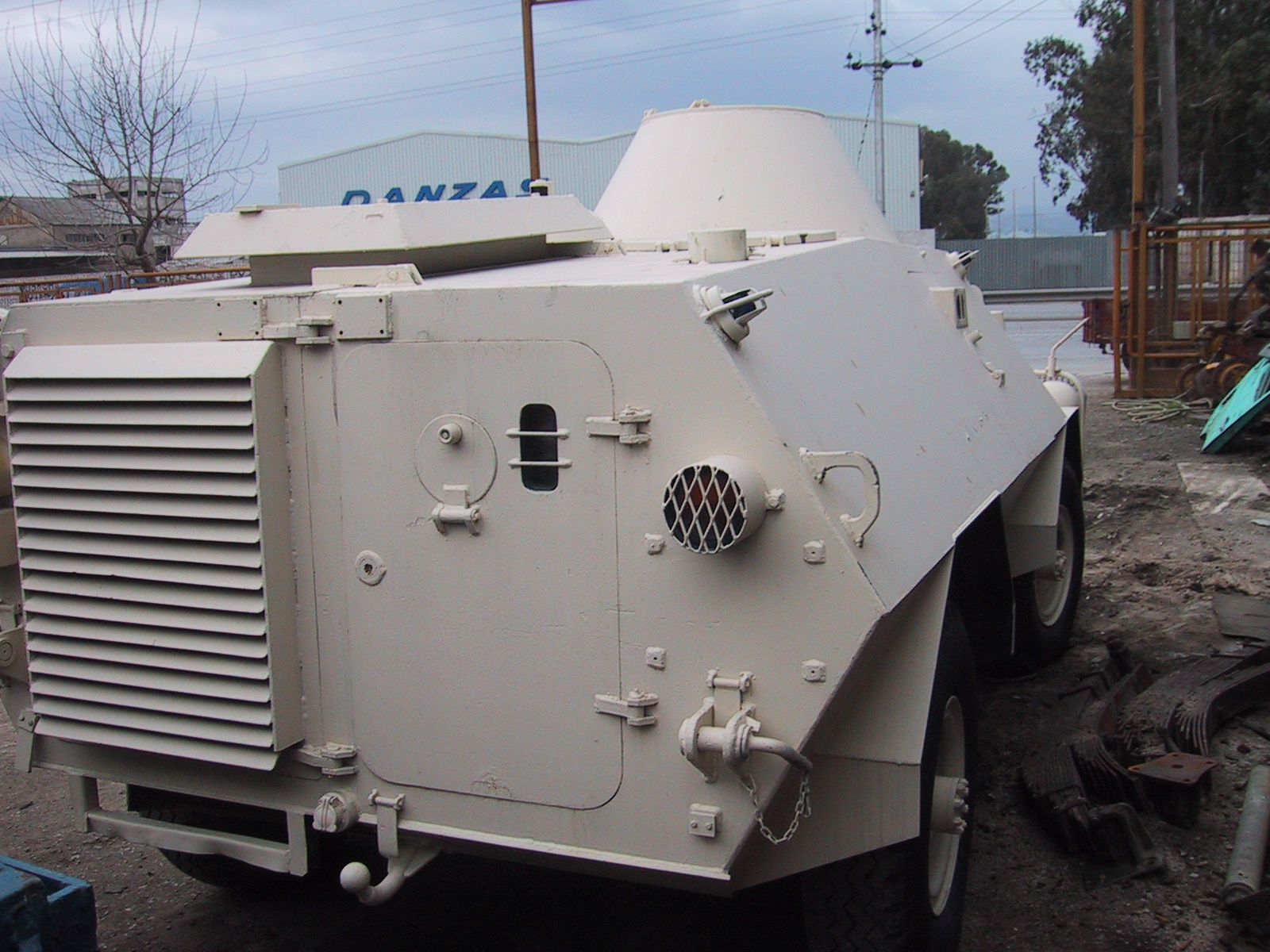

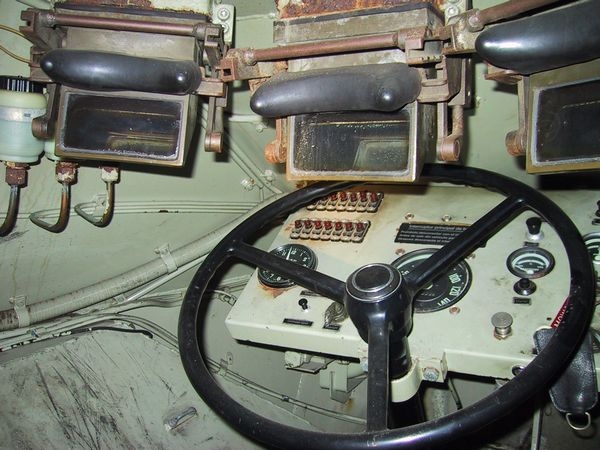

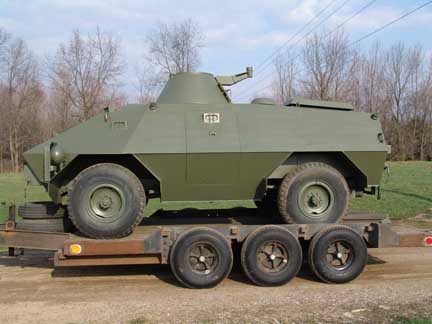

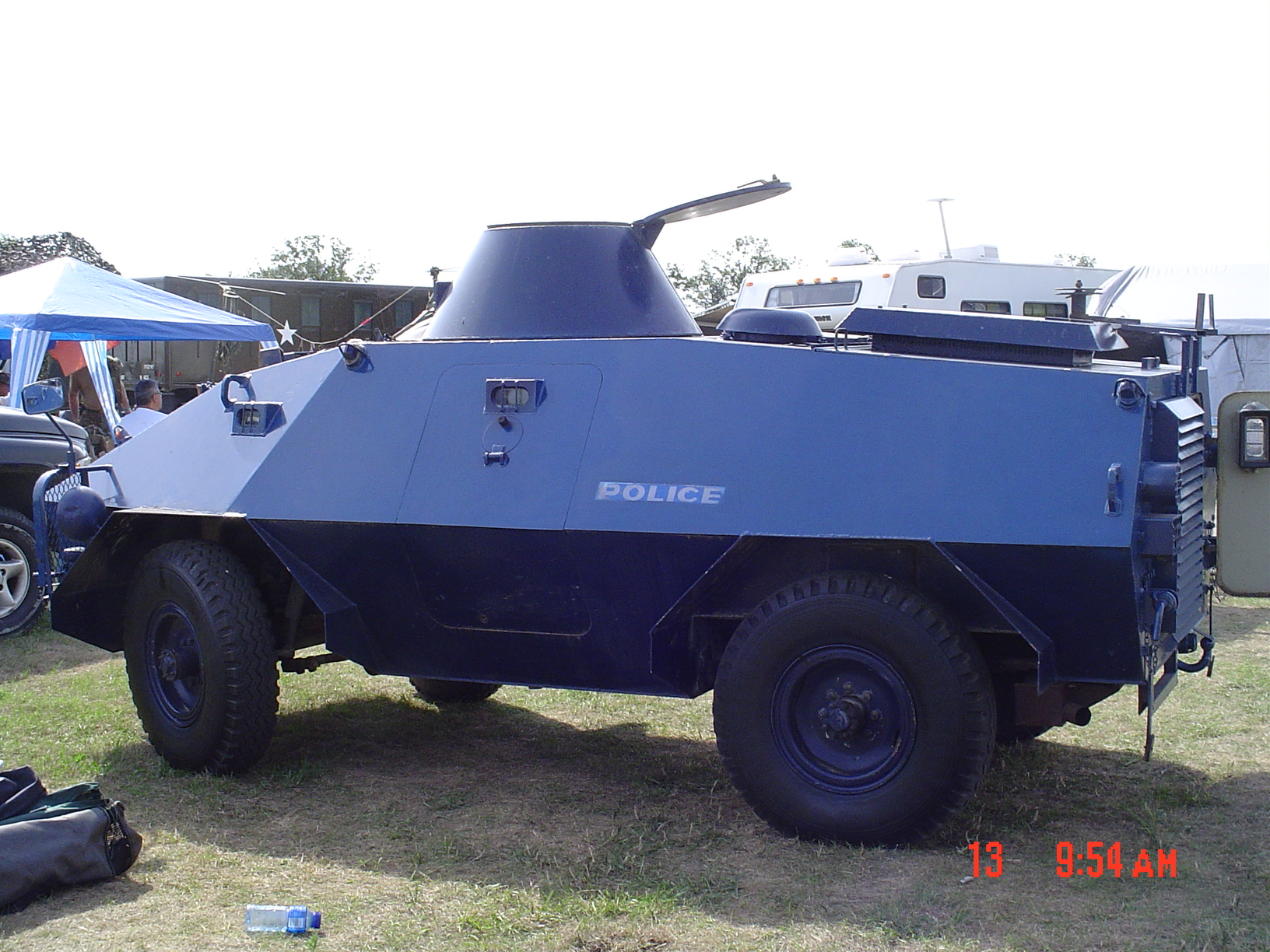

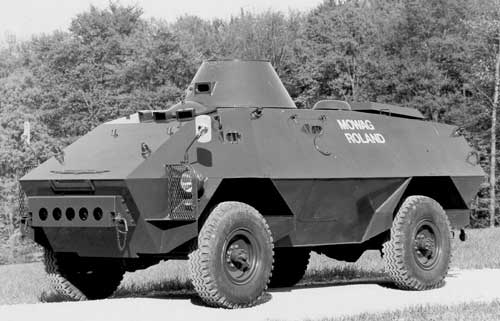

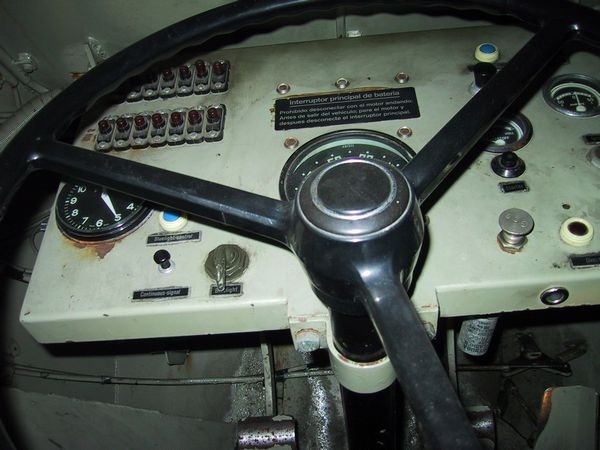

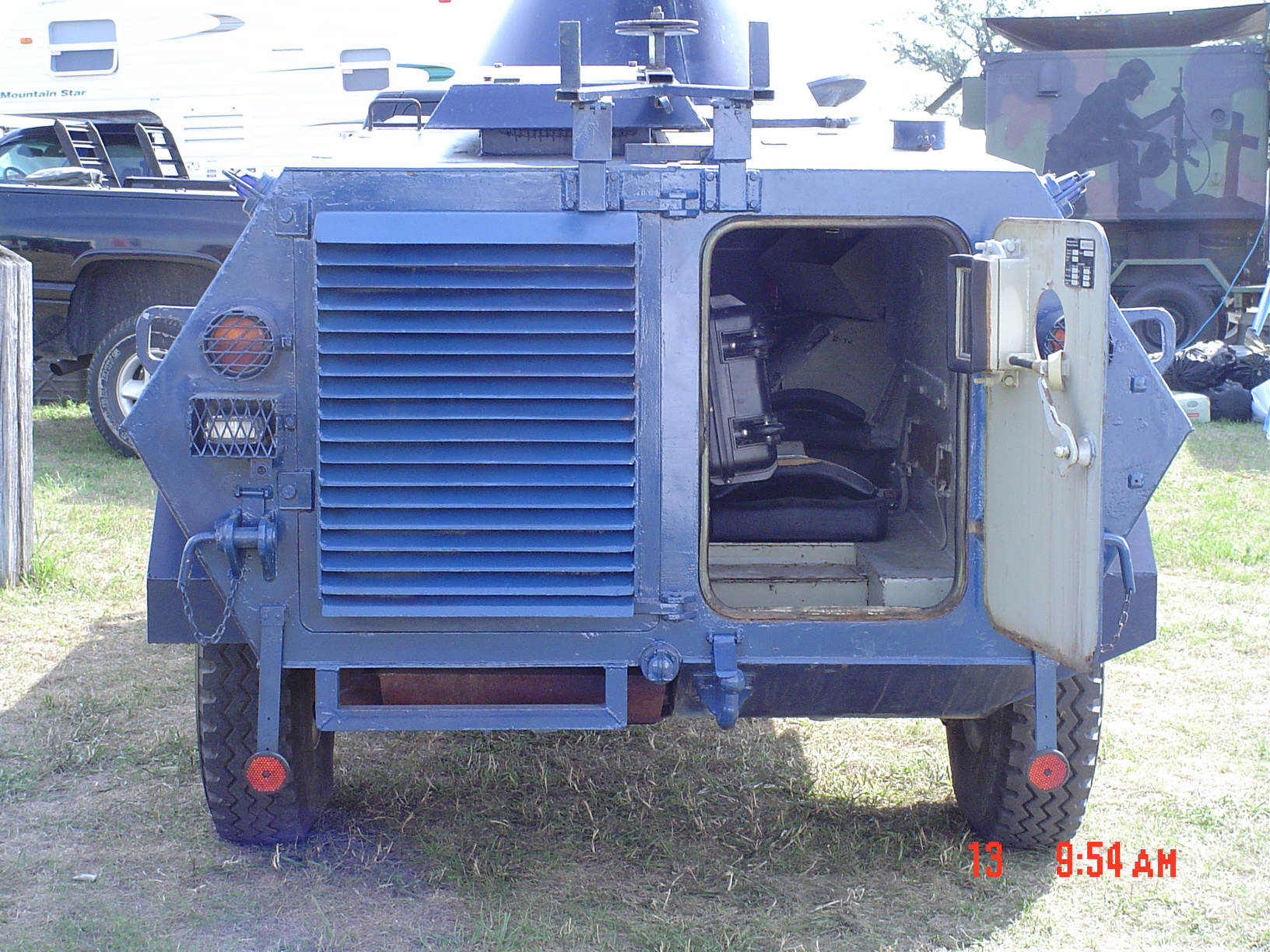

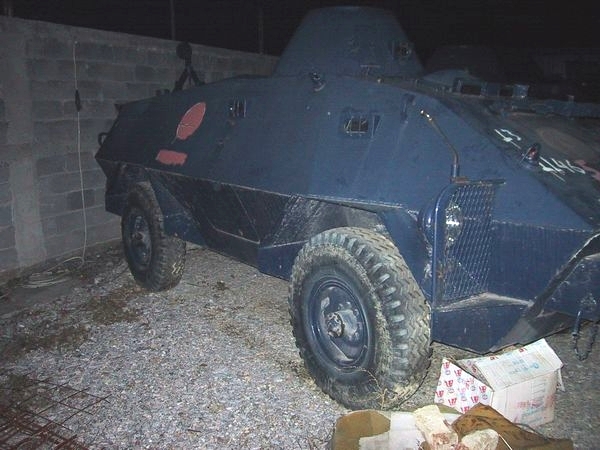

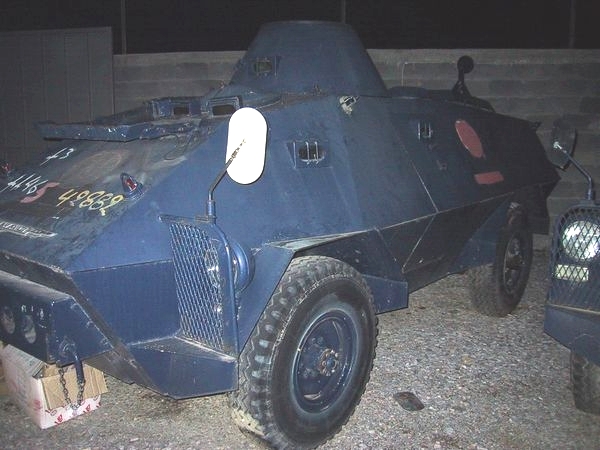

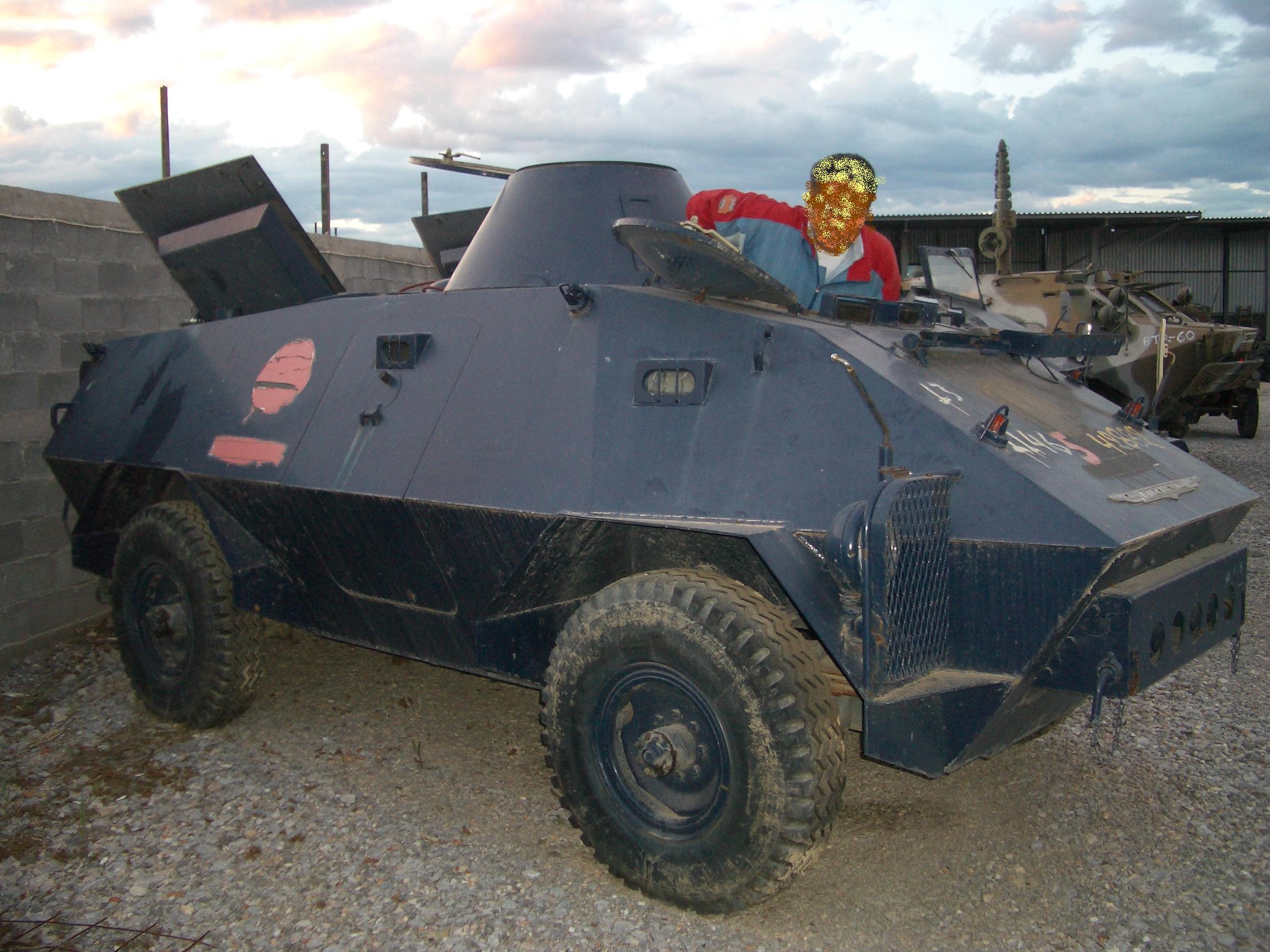

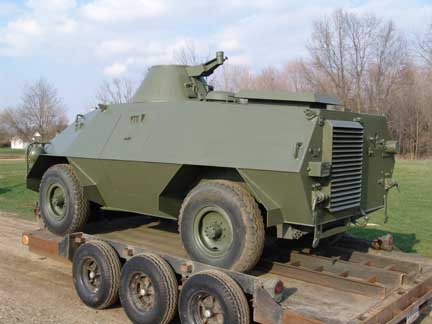

Photos of the MOWAG Roland APC:
